2001-2002 Panoz LMP07

Images courtesy and copyright James Davies and Patrick Michl
Text copyright Michael J. Fuller

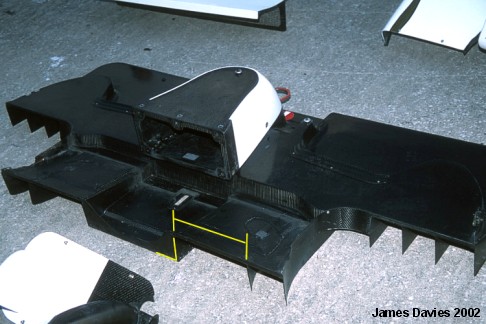

The 2001 LMP07's diffuser is very similar to the LMP1's.  The only outward difference is the distance between the engine and the inboard most strake (which makes sense as the new Panoz V8 is much smaller than the old pushrod motor) and the sharp corner where there once was a radius.  See the LMP1 diffuser to compare

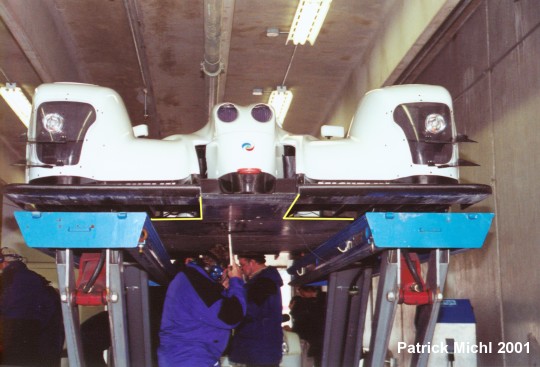

Looking underneath, highlighted is the start of the flat bottom and the centersection of the diffuser taken up by the engine.
