2000-2001 Reynard 2KQ LM & 01Q

Image courtesy and copyright Bob Nelson
Text copyright Michael J. Fuller

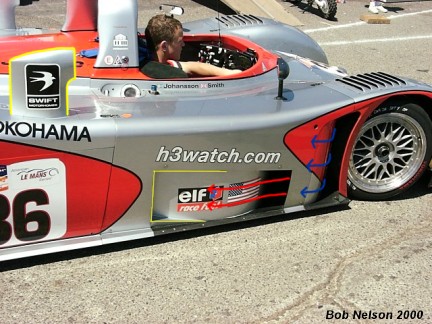

Another new feature is that now the front undertray air exits out a cut-out in the side of the chassis (red arrows).  The wheel well air still exits out its own vent (blue arrows).  Additionally, an intake (yellow highlight) has appeared behind the undertray vent creating more flow through the engine bay potentially reducing base area.

Note that the engine intakes are more upright, less sinuous a shape, in elevation view (yellow).
