2001-2003 Dome S101

Images courtesy and copyright Juha Kivekas
Text copyright Michael J. Fuller

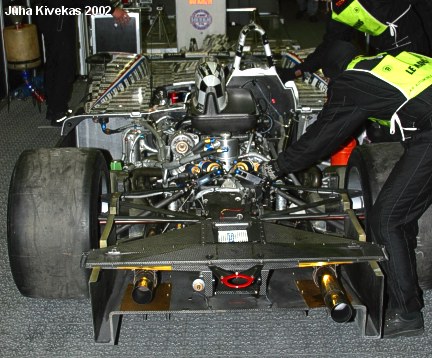

Le Mans 2002Rear diffuser is to maximum width.  The rear structure takes the load distributed through the body work from the rear wing.

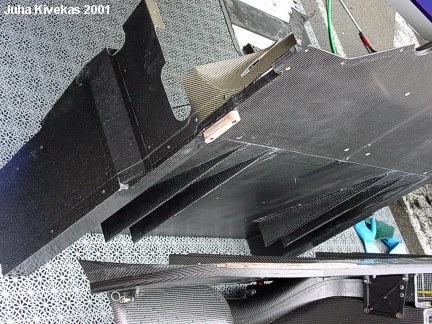

Le Mans 2001The diffuser strakes terminate short of the maximum extent of the rear diffuser.

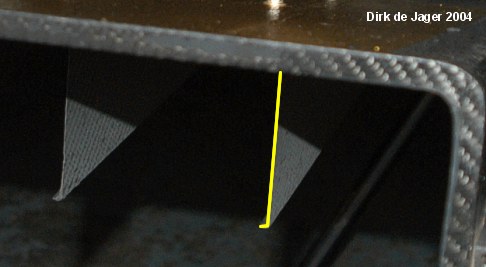

Spa 2003The rear diffuser strakes have an inboard facing  lip along their bottom edge.
