2000 Lola B2K/10

Images copyright and courtesy Marc Urbano and Michael J. Fuller
Text copyright Michael J. Fuller

The B2K has a very prominent "bow" forming in the middle of the nose and blending towards the cockpit that acts to direct air either side of the cockpit rather than over the top thereby reducing the amount of air volume interacting with the roll hoop and driver.  Speaking with the crew of a certain Lola team, they indicated that the drivers never complained of buffeting and that air deflectors were never installed.  More importantly, the bow also reduces the amount of airflow that would be producing lift upon the top surfaces of the tub.  That the drivers never complained of buffeting is proof that the bow did its job and reduced lift.

One other element to point out is the valence type plate (yellow arrow).  The plate is in place primarily to meet rule 1.6.2 of the 2000 ACO regulations.  That regulation states that, "As viewed from above (plan view), from the sides (elevation view) et from the front, the bodywork must not allow mechanical parts to be seen."

Also note that the brake duct on the Lola powerful aero. balance tuning device.

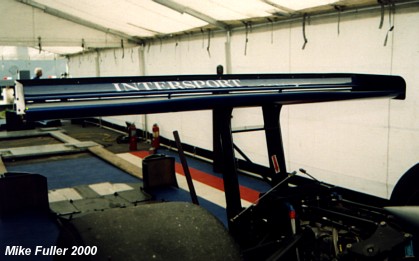

The varying chord rear wing on the Lola B2K/10 isn't new.  The Lola B98/10 also had such a wing.  This indicates that the flow fields behind the rear wing are different enough to warrant different wing sections outboard and inboard.  Considering that the boat bow nose of the Lola directs air to either side of the monocoque rather than over it, it is no wonder that the flow fields are different.
Note the bulged center section.
